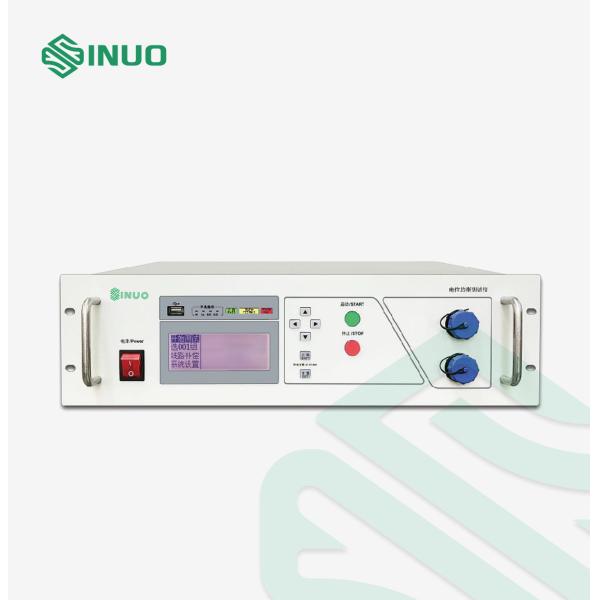

IEC 61851 Electric Vehicle Potential Equalization Test Equipment
Complied Standards & Clauses
IEC 61851 Electric vehicle conductive charging system
IEC 60335 Household and similar electrical appliances
IEC60598 Luminaires-Part 1: General requirements and test
IEC60950 Information technology equipment
...
Equipment Overview
1. The basic accuracy is 1%, and the test current is 2A-50A.
2. The high-quality constant current output adopts 32-bit ARM chip to ensure the reliability and stability of the test.
3. The four-wire method reduces the error caused by the test line and ensures the accuracy of the test result.
4. 10 memory groups, 8 test steps, can quickly switch between groups.
5. Adopt a variety of anti-interference measures, with software and hardware protection.
6. Optional 10-channel test, and more channels can be customized.
Function Features
| Model | SNE6115D |
| Working Conditions | Power supply | AC220V±10%, 50Hz±5% |
| Environmental Temperature | 0-40℃ |
| Environmental Humidity | 20-80%RH 40℃ |
| Display method | LCD (192*64) |
| Alarm method | Sound and light alarm: buzzer, indicator light |
| Function configuration description | RS232 | Optional RS485 |
| Switch signal output | Qualified, unqualified, testing |
| Remote control function | Start and stop |
| Memory group | Qualified, unqualified, testing |
| Line resistance cleared | Line resistance cleared |
| Meter standby power consumption | ＜20W |
Technical Parameters
| Standards applied | IEC 61851, IEC60335, IEC60598, IEC60950, etc |
| Resistance test method | Four-wire system |
| Open circuit voltage | 10V |
| Output current | Predetermined area | DC 2.0~50.0A |
| Resolution | 0.1A |
| Precision | ± (1% setting value+0.2A) |
| Resistance | Measuring range | 1-600mΩ |
| Resistance to zero | 0~100.0mΩ |
| Measurement resolution | 1mΩ |
| measurement accuracy | ± (1% reading value+3mΩ) |
| Testing time | Predetermined area | 0.0~999.9s (0.0= continuous output) |
| Resolution | 0.1s |
| Precision | ± (0.1% setting value+0.05s) |
